Graffiti X - Reservation

RESERVE NOW TO BE FIRST IN LINE WHEN SALES RESUME IN SPRING. TARGET DELIVERY IS AUGUST.

$49.00

GRAFFITI X'S STAND-OUT FEATURES

3000 WATT MOTOR

With 2-3 times the power of other bikes in its class, there’s no competition

60V 40AH BATTERY

Endless adventures with 60-70 miles in eBike mode, 35-40 miles in off-road mode

TWO SPEED MODES

Casually cruise in the bike lane, or turn it up a notch in off-road mode with 45 mph top speed

FULL SUSPENSION

We heard you on the full suspension, so the Graffiti X has front and rear suspension for a smooth ride.

Key Features

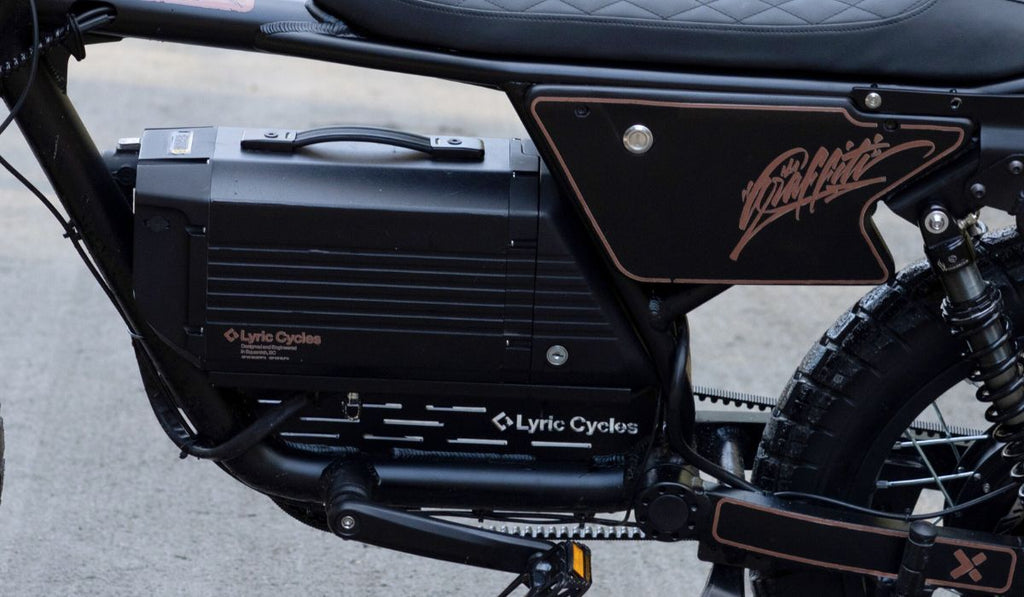

60V 40AH Battery

With a robust 60V battery, the Graffiti X takes the phrase "bigger is better" to heart, turning up the range, power and speed to category-topping levels.

Power in Spades

The 3000 watt motor peaks at 7200 watts, so you’ll have more than enough torque to climb hills with ease, and haul your everyday cargo. Access that power with a 9-level pedal assist, or simply twist the throttle and go.

Full Suspension

Bring on the off-roads less travelled. The 160mm front and 90mm rear dual shock hydraulic suspension with adjustable rebound, makes the Graffiti X a smooth operator wherever your adventures take you.

Two Speed Modes

With power literally at your fingertips, you can cruise in the bike lane at the legal eBike speed limit, or turn it up a notch in off-road mode and access 45 mph top speed.

Low-Maintenance Design

Life can be high maintenance… your bike shouldn’t be. A completely sealed water-resistant system and carbon belt-drive means your drivetrain is waterproof, rust-proof, and lubrication-free.

Stop On a Dime

High speeds require elevated stopping capability. With 4-piston Magura hydraulic brakes, you confidently and safely ride fast. Plus - you’ll top up your battery with regen braking.

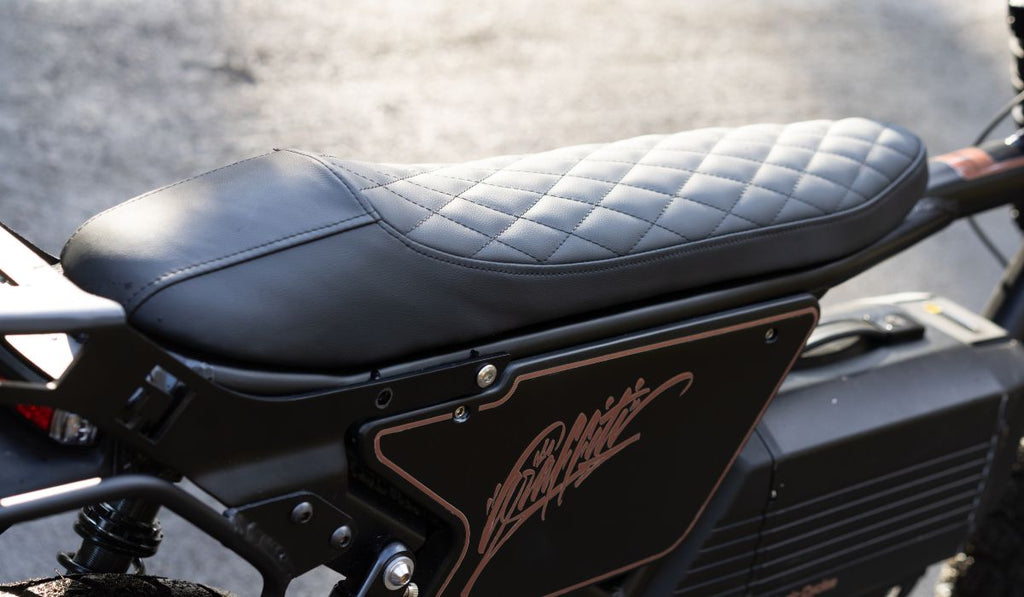

Two Passenger Seat

For the team adventures, commutes or drop-offs, the extended saddle and passenger pegs comfortably accommodate your number two.

Illuminate Your Journey

Light up your ride, day or night. Our 6000 lumen headlight, integrated brake lights and turn signals keep you safe and stylish, illuminating your path with a sleek setup.

Unparalleled Traction

Grip the road or trail with confidence with dual sport tires, engineered for traction, durability, stability and reliability in both urban streets and off-road terrain.

MARK YOUR CALENDARS!

EXCITING GRAFFITI X EVENTS AHEAD

Join us for an exclusive opportunity to experience this amazing bike firsthand.

THE GRAFFITI X IS AT THE TOP OF ITS CLASS

Our Service is as good as our bikes

FREE SHIPPING

We offer free shipping across Canada and the Lower 48 States.

ONE YEAR WARRANTY

We provide one year tip-to-tail warranty on our electric bikes. No buyer's remorse here!

PAYMENT PLANS AVAILABLE

Ride now and pay later. Payment plans available for up to 24 months. Learn more.

Detailed Specifications & Geometry

Power, Range & Electronics

STOCK POWER (CLASS 2 USA)
Legal mode: 750W (1600W peak)
Unlimited mode: 3000W (7200W peak)
Top speed eBike mode: 20 mph
Top speed off-road mode: 45 mph

*NOTE: Speed regulated to 20 mph in the eBike mode as a legal class 2 electric bicycle in the USA. Off-road mode is for use on private land only.

STOCK POWER (CANADIAN)
Legal mode: 500W (1600W peak)
Unlimited mode: 3000W (7200W peak)
Top speed eBike mode: 32 kmh
Top speed off-road mode: 72 kmh

*NOTE: Speed and wattage regulated to 32 km/h as a legal electric bicycle in Canada. Off-road mode is for use on private land only.

RANGE
60V 40ah battery: 60-70 miles in eBike mode, 35-40 miles in off-road mode

*Range formula used: With a 175lb rider, 30-35 Wh per mile in eBike mode (15-20 mph), 55-60 Wh per mile in off-road mode (35 mph).

BATTERY
60V, 40ah (2400 Wh) with 21700 Samsung 50E cells, rated for 1000 charge cycles

CONTROLLER
60V, 80 amp controller

DISPLAY
APT 860c display

CHARGER
110V, 8 amp charger 110V input

PEDAL ASSIST
Configurable 3-9 level pedal assist with sealed 12 magnet cadence sensor

THROTTLE
Right side full twist throttle with throttle cancel button

LIGHTS
6000 lumen 7” DOT motorcycle headlight
Integrated tail and brake light
Independent front turn signals and integrated rear turn signals (in tail light unit)

HORN
12V horn with handlebar controls

WIRING
IP54 rated, internally run, water-resistant connectors and wiring harness

Components

FRAME
6061 custom aluminum with integrated rear rack

SADDLE
Custom 2-passenger seat

BATTERY MOUNT
Custom battery mount on low-center of gravity mount tray

SEAT POST
None: seat not adjustable

BRAKES
Magura Mt5e 4-piston disc brakes with 203mm rotors front and rear, plus regenerative braking

DRIVETRAIN
Gates drive system
60 tooth front cog
Single speed 12 tooth freewheel

SUSPENSION
Hydraulic front suspension with 160mm travel and adjustable rebound
Dual rear spring suspension with 50lb spring rate and 90mm travel

FRONT END
Front wheel dropout: 135mm hub spacing
Axle: 20mm threaded axle with nuts

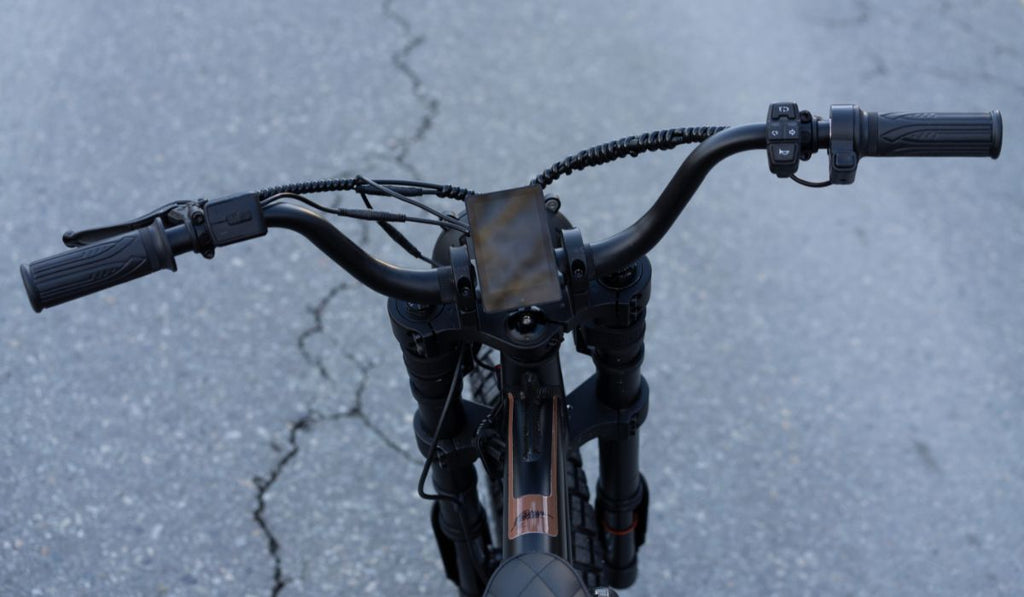

Grips: mountain bike style lock on grips
Handlebar: Aluminum handlebar, 5" rise
Headset: Threadless internal sealed headset. Straight 1-1/8”

STEM
Double crown direct mount, CNC aluminum

RACK
Optional rack/pannier extender sold separately

TIRES
20” x 4”, Vee Huntsman tires

TIRE TUBE
20" x 4" with Schrader valve

RIMS
Alloy, double wall 16” motorcycle rims, 36 hole, black

SPOKES
Stainless steel, 10 gauge front, 10 gauge rear, black with silver nipples

PEDALS
Black steel Welgo platform

KICKSTAND
Side-mounted, adjustable length

Measurements

TOTAL WEIGHT
73 lbs (33 kg) without battery

BATTERY & MOTOR WEIGHT
Battery: 24 lbs (11 kg)
Motor: 13 lbs (6 kg)

RIDER FIT
Fits riders 5'2 - 6'3

FRAME SIZE
20" stack height (51 cm) cafe racer frame design

STANCE
1320 mm wheelbase

STANDOVER HEIGHT
31" standover height

FAQs

What are the key differences between 2023 Graffiti and the Graffiti X?
  • Hardtail (Graffiti) vs. full suspension (Graffiti X)
  • 52V (Graffiti) vs. 60V (Graffiti X)
  • Road tires (Graffiti) vs. off-road tires (Graffiti X)
  • Graffiti X is higher in power, acceleration, and top speed
  • Graffiti X comes with a full light package with turn signals on
Which Graffiti is right for me?

This will depend on your use case.

If you’re an urban cruiser planning to mainly ride in the bike lanes, and stick to the legal eBike speed limit (20 mph), and you’re looking for a lower price point, the Graffiti is probably the one for you.

If you are an adrenaline junkie, you live for speed and power, and you want to ride on road and off road, The Graffiti X was made for you!

When can I buy the bike?

You can reserve your Graffiti X today to be first in line when we begin selling in the Spring. Though sales will open back up in the Spring, the bike will ship in August.

When will I get the bike?

We are targeting an August delivery date.

Where can I test ride / try the Graffiti X?

We will likely do some on-location events in the Spring, where you’ll be able to take the bike for a spin. Please sign up to our  VIP List to stay informed.

What is the range? How far can I go?

eBikes are much more dependent on the conditions to produce a range estimate than cars are, so the answer depends on how you plan to ride, and the weight of the rider(s) and cargo. However, our general estimate is 60-70 miles in eBike mode, and 35-40 miles in off-road mode.

*Range formula used: With a 175lb rider, 30-35 Wh per mile in eBike mode (15-20 mph), 55-60 Wh per mile in off-road mode (35 mph).

Our general estimate, considering a 175 pound rider, at an average speed of 15-20 mph with pedal assist, will get you about 70-80 miles with the dual batteries.

How does it handle hills?

The Graffiti X uses a direct drive motor with a very high powered controller and this combination makes 150 nm of torque, so steep hills are not an issue for the Graffiti X. Even maintaining speeds of 20mph up hills is not a challenge for the power output of the Graffiti X.

How long does the battery take to charge?

The charger provided is an 8 amp charger which will charge the bike from 20% to 80% (normal use for most riders) in 2 hours. To charge from fully drained to 100% will take just over 4 hours.

What are the wheel and tire sizes? Are the tires puncture resistant?

The Graffiti X uses motorcycle rims and tires to allow the bike to handle the top speed the powertrain will allow for. The wheels are 16 x 2.15” rims with 10 gauge spokes and it uses 16” dual sport motorcycle tires. An interesting fact to note is that 16” motorcycle rims are the same size as 20” bicycle rims, this is based on a difference in how the motorcycle and bike industry measure rims. So while we use motorcycle rims and tires, the size of both is similar to 20 x 4” bicycle wheels and tires.

What sizes does the bike come in? What’s the seat height?

Similar to a motorcycle, this eBike comes in just one size and it fits most from 5’1 to 6’4.

The height of the seat is at 30.5”, which is similar to the height of most motorcycles. We have had riders on the Graffiti X from 4”11 to 6”6, but the perfect height range is between 5’2 to 6’4.

How much does the Graffiti X weigh?

Weight without the batteries installed the bike weighs 37kg / 82lbs. The battery weighs 13 kg / 28lbs

What is the rider weight capacity?

The capacity is 350 pounds, which includes the weight of the bike. So approx 250 pounds for the rider / cargo without compromising performance of the motor and brakes. That said, the rider could go up to 300-325 pounds, the bike won't climb hills as easily and can be at risk of overheating, will get less range, and not hit the same top speed. Beyond 350 pounds, the brakes and/or motor may begin overheating, and it becomes unsafe.

Can I ride in the rain? Is it waterproof?

The Graffiti X is rated IP54, which is splash proof, so for the most part, the Graffiti X can withstand rain without damage to its electric components and the electric components are well protected in a covered space on the bike. However, be aware this is not a guarantee against water damage. Long exposure or parking for long periods in the rain, exposure to freezing / thawing cycles, and the like, can cause damage. That said, the bike has been planned for use in rainy conditions, and tested in the wet weather of Canada’s west coast where it was born.

Can a bike trailer be attached?

Yes! There are two mounting points behind the passenger foot pegs. The weight capacity for the bike remains the same at 350lbs, so the weight of the trailer is included in that because it is the same limitation for the motor and the brakes.

×
